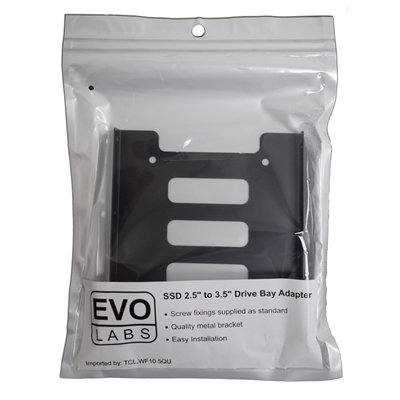

Evo Labs 2.5 INCH to 3.5 INCH Single Internal Drive Bay Adapter, Metal, for 2.5 INCH SSD/HDD

The Evo Labs ESHD-2535A is a Universal Mounting Bracket designed to fit any standard 2.5-inch Solid State Drive (SSD) or Hard Disk Drive (HDD) into a Standard 3.5-inch Internal Computer Drive Bay

Compatible Drive Types (What fits inside the adapter)

The adapter accepts a single 2.5-inch storage drive, including:

All standard 2.5″ Solid State Drives (SSDs) from brands like Samsung, Crucial, Kingston, SanDisk, and ADATA.

All standard 2.5″ Hard Disk Drives (HDDs) typically found in laptops or portable external enclosures.

Varying drive thicknesses conforming to standard 7mm, 9.5mm, or older laptop drive heights

Compatible System Layouts (Where the adapter fits)

The external dimensions and screw placement of the bracket mimic a traditional 3.5″ desktop hard drive. It is compatible with:

Standard Desktop PC Cases: Fits any ATX, Micro-ATX, or Mini-ITX computer tower featuring a traditional, open 3.5″ internal drive caddy or cage

Traditional Screw-in Drive Bays: Fits standard mounting slots where the drive is secured directly to the chassis using the provided side or bottom screw fixings

Key Features:
2.5″ to 3.5″ bracket
Perfect for SSD upgrades in PC desktops
Ideal for 2.5″ HDD or SSD fitment into 3.5″ Drive Bays
Easy and secure 3.5″ bay placement
Screw fixings supplied as standard

Specifications

Device Type:
Internal Hard Disk Drive (HDD) / Solid State Drive (SSD) mounting bracket

Material:
Rigid Stamped Metal

Colour:
Matte Black

Weight:
0.067 kg (67 grams)

Capacity & Configurations

Supported Drive Form Factor:
2.5-inch (Accepts all standard 7mm, 9.5mm, and 12.5mm drive heights)

Target Bay Installation:
3.5-inch internal computer chassis drive bay

Maximum Drive Capacity:
Accommodates exactly 1 storage drive
